The Air Turn Bar discharges air from the holes on its surface and raises the base material using the discharge pressure to carry it in a contactless manner.
Special features
・Non-contact, preventing scratches, creases and static electricity
・Capable of stably raising and carrying the material thanks to it being lifted only 1 to 2 mm on average
・Extremely low discharge airspeed of 1 to 5 m/sec, preventing twisting and fluttering
・Capable of continuous transport with extremely low tension
・Unaffected by the transport speed
・No need for bearings thanks to the non-rotating body, causing no mechanical loss
・Capable of working as a drying furnace by discharging hot air (420ºC heat resistance)
・Capable of preventing scratches due to a difference in rotational direction between the base material and guide rolls during a directional change
Use
・Non-contact transport of non-porous base materials
・Heating/cooling
・Alternative to guide rolls
Examples of applicable base materials
Resin films (e.g., PET, PP, TAC), optical films, metal foils, rubber sheets, fabrics, substrates, etc.
Production specs
Width of Turn bar：80〜1000mm
Lengt ：100〜6800mm
Material ：SUS-304, SUS-316, Titanium
Surface ：Special perforated panel (patented)

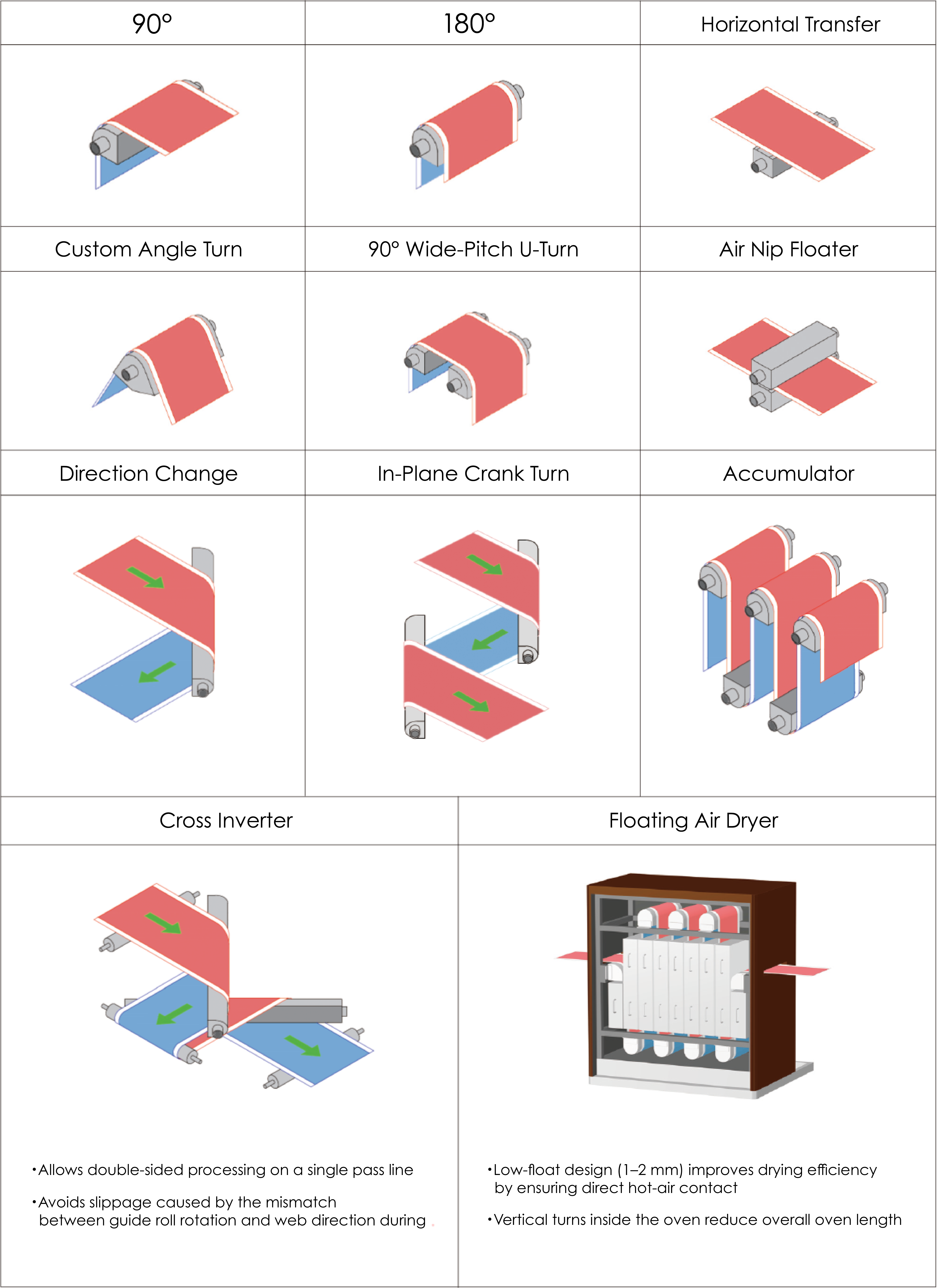

Included angle ：0~180 degrees (standard: 0, 90, 180 degrees)
